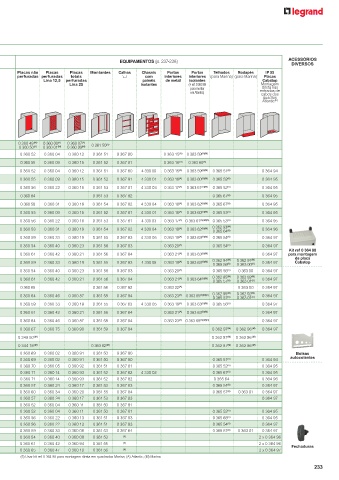

Page 235 - Catálogo Geral Legrand 2023

Quadros e equipamentos Atlantic e Marina

DIMENSÕES QUADROS ATLANTIC (p. 234) QUADROS MARINA (p. 230)236 EQUIPAMENTOS (p. 237-238) ACESSÓRIOS
EXTERIORES DIVERSOS
METÁLICOS IP 66 - IK 10 (1 porta) POLIÉSTER - IP 66 - IK 10 Placas não Placas Placas Montantes Calhas Chassis Portas Portas Telhados Rodapés IP 55
P IP 55 - IK 10 (2 portas) perfuradas perfuradas totais 3 com interiores interiores (para Marina) (para Marina) Placas
Lina 12,5 perfuradas painéis de metal isolantes Cabstop
Lina 25 isolantes (+ ref. 0 363 69 Montagem
para montar direta nas
RAL 7035 RAL 7035 RAL 7035 RAL 7035 em Atlantic) entradas de
cabos dos
A fornecidos com placa com janela transparente com janela transparente quadros
não perfurada Atlantic (5)
L

A L P
Formas
(mm) (mm) (mm)
0 360 49 (M) 0 360 00 0 360 07
(A)
(A)
300 200 160 0 369 10 (1) 0 362 50 0 361 50 (A)
0 360 50 (A) 0 360 01 (M) 0 360 99 (M)
400 300 160 0 369 12 (1) 0 360 52 0 360 04 0 360 12 0 361 51 0 367 80 0 363 15 (A) 0 363 59 (A)(M)
500 400 160 0 369 13 (1) 0 360 55 0 360 09 0 360 15 0 361 52 0 367 81 0 363 16 (A) 0 363 60 (A)
400 300 200 0 369 17 0 369 27 0 362 51 0 362 71 0 360 52 0 360 04 0 360 12 0 361 51 0 367 80 4 330 00 0 363 15 (A) 0 363 59 (A)(M) 0 365 51 (A) 0 364 94
500 400 200 0 369 18 0 369 28 0 362 52 0 362 72 0 360 55 0 360 09 0 360 15 0 361 52 0 367 81 4 330 01 0 363 16 (A) 0 363 60 (A)(M) 0 365 52 (A) 0 364 95
600 400 200 0 369 19 0 369 29 0 360 56 0 360 22 0 360 16 0 361 53 0 367 81 4 330 03 0 363 17 (A) 0 363 61 (A)(M) 0 365 52 (A) 0 364 95
600 500 200 0 369 20 0 360 84 0 361 53 0 367 82 0 365 67 (A) 0 364 95
700 500 200 0 369 21 0 360 58 0 360 31 0 360 18 0 361 54 0 367 82 4 330 04 0 363 18 (A) 0 363 62 (A)(M) 0 365 67 (A) 0 364 95
500 400 250 0 369 25 0 360 55 0 360 09 0 360 15 0 361 52 0 367 81 4 330 01 0 363 16 (A) 0 363 60 (A)(M) 0 365 53 (A) 0 364 95
600 400 250 0 369 26 0 369 36 0 362 55 0 362 75 0 360 56 0 360 22 0 360 16 0 361 53 0 367 81 4 330 03 0 363 17 (A) 0 363 61 (A)(M)(5) 0 365 53 (A) 0 364 95
0 362 93
(M)
700 500 250 0 369 30 0 369 40 0 362 56 0 362 76 0 360 58 0 360 31 0 360 18 0 361 54 0 367 82 4 330 04 0 363 18 (A) 0 363 62 (A)(M) 0 364 96
0 365 64 (A)
800 600 250 0 369 31 0 369 41 0 360 59 0 360 33 0 360 19 0 361 55 0 367 83 4 330 05 0 363 19 (A) 0 363 63 (A)(M) 0 365 54 (A) 0 364 97
1000 600 250 0 369 32 0 360 54 0 360 40 0 360 23 0 361 56 0 367 83 0 363 20 (A) 0 365 54 (A) 0 364 97
Kit ref 0 364 98
1000 800 250 0 369 33 0 360 61 0 360 42 0 360 21 0 361 56 0 367 84 0 363 21 (A) 0 363 63 (A)(M) 0 364 97 para montagem
de placa
(M)
(M)
800 600 300 0 369 37 0 369 47 0 362 61 0 362 81 0 360 59 0 360 33 0 360 19 0 361 55 0 367 83 4 330 05 0 363 19 (A) 0 363 63 (A)(M) 0 362 94 0 362 91 0 364 97 Cabstop
(A)
0 363 00
(A)
0 365 56
1000 600 300 0 369 38 0 369 48 0 360 54 0 360 40 0 360 23 0 361 56 0 367 83 0 363 20 (A) 0 365 56 (A) 0 363 00 0 364 97
(M)
(M)
1000 800 300 0 369 39 0 369 49 0 362 63 0 362 83 0 360 61 0 360 42 0 360 21 0 361 56 0 367 84 0 363 21 (A) 0 363 64 (A)(M) 0 362 95 0 362 92 0 364 97
(A)
0 365 57
0 363 01
(A)
1200 600 300 0 369 42 0 360 85 0 361 58 0 367 83 0 363 22 (A) 0 363 00 0 364 97
(M)
0 362 95 0 362 92
(M)
1200 800 300 0 369 43 0 362 64 0 362 84 0 360 64 0 360 46 0 360 87 0 361 58 0 367 84 0 363 23 (A) 0 363 65 (A)(M)(3) (A) (A) 0 364 97
0 365 57 0 363 01
800 600 400 0 369 44 0 360 59 0 360 33 0 360 19 0 361 55 0 367 83 4 330 05 0 363 19 (A) 0 363 63 (A)(M) 0 365 56 (A) 0 364 97
1000 800 400 0 369 45 0 360 61 0 360 42 0 360 21 0 361 56 0 367 84 0 363 21 (A) 0 363 63 (A)(M) 0 364 97
1200 800 400 0 369 46 0 369 56 0 360 64 0 360 46 0 360 87 0 361 58 0 367 84 0 363 23 (A) 0 363 65 (A)(M)(3) 0 364 97
1400 800 400 0 369 50 0 369 60 0 362 85 0 360 67 0 360 75 0 360 90 0 361 59 0 367 84 0 362 97 (M) 0 362 96 (M) 0 364 97
1600 800 400 0 362 86 0 349 50 (M) 0 362 97 (M) 0 362 96 (M)
1800 800 400 0 362 87 0 344 18 (M) 0 363 92 (M) 0 362 97 (M) 0 362 96 (M)
300 300 160 0 369 51 (1) 0 360 69 0 360 02 0 360 91 0 361 50 0 367 80 Bolsas
300 300 200 0 369 55 0 360 69 0 360 02 0 360 91 0 361 50 0 367 80 0 365 51 (A) 0 364 94 autocolantes
400 400 200 0 369 57 0 360 70 0 360 05 0 360 92 0 361 51 0 367 81 0 365 52 (A) 0 364 95
500 500 200 0 369 59 0 360 71 0 360 14 0 360 93 0 361 52 0 367 82 4 330 02 0 365 67 (A) 0 364 95
500 500 250 0 369 62 0 360 71 0 360 14 0 360 93 0 361 52 0 367 82 0 365 64 0 364 96
600 600 250 0 369 64 0 369 74 0 360 57 0 360 24 0 360 17 0 361 53 0 367 83 0 365 54 (A) 0 364 97
800 800 300 0 369 68 0 360 60 0 360 34 0 360 20 0 361 55 0 367 84 0 365 57 (A) 0 363 01 0 364 97
600 600 400 0 369 72 0 360 57 0 360 24 0 360 17 0 361 53 0 367 83 0 364 97
300 400 160 0 369 11 (1) 0 360 52 0 360 04 0 360 11 0 361 50 0 367 81
300 400 200 0 369 75 0 360 52 0 360 04 0 360 11 0 361 50 0 367 81 0 365 52 (A) 0 364 95
400 600 200 0 369 76 0 360 56 0 360 22 0 360 13 0 361 51 0 367 83 0 365 68 (A) 0 364 95
400 600 250 0 369 77 0 360 56 0 360 22 0 360 13 0 361 51 0 367 83 0 365 54 (A) 0 364 97
600 800 300 0 369 78 (2) 0 360 59 0 360 33 0 360 06 0 361 53 0 367 84 0 365 57 (A) 0 363 01 0 364 97
600 1000 300 0 369 79 (2) 0 360 54 0 360 40 0 360 08 0 361 53 (4) 2 x 0 364 96
800 1000 300 0 369 80 (2) 0 360 61 0 360 42 0 360 94 0 361 55 (4) 2 x 0 364 96
Fechaduras
1000 1200 300 0 369 81 (2) 0 360 65 0 360 47 0 360 10 0 361 56 (4) 2 x 0 364 97
(1) Sem placa de entrada de cabos; (2) 2 portas; (3) Área disponível: 800 x 600 mm; (4) Calhas a ser cortadas (2 m) podem ser usadas para quadros de largura 1000 e 1200 (5) Usar kit ref. 0 364 98 para montagem direta em quadrados Marina; (A) Atlantic; (M) Marina
